LDO linear voltage regulator AMS1117-3.3 SOT223 LM1117
1A Adjustable / Fixed Low Dropout Linear Regulator
Application：Post Regulator for switching DC/DC、Converter 、High Efficiency Linear Regulator、Battery Chargers、PC Add on Card、Motherboard、clock supplies、LCD Monitor、Set-top Box
FEATURES：
Low Dropout Voltage.
Load regulation: 0.5% Max.
Optimized for Low Voltage On-chip thermal limiting.

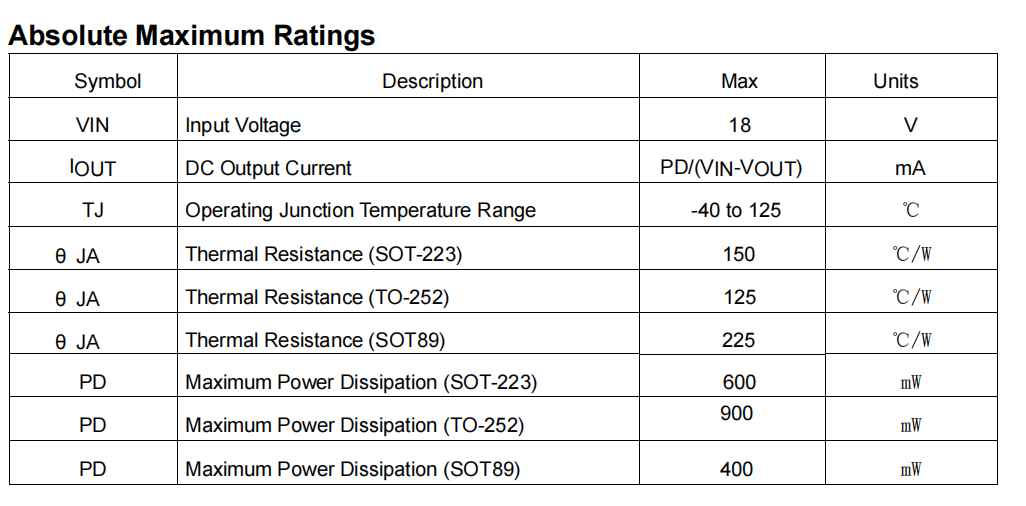

Maximum Input Voltage : 18V
Adjustable Output Voltage or Fixed 1.2V,
1.5V, 1.8V, 2.5V, 3.3V,5V

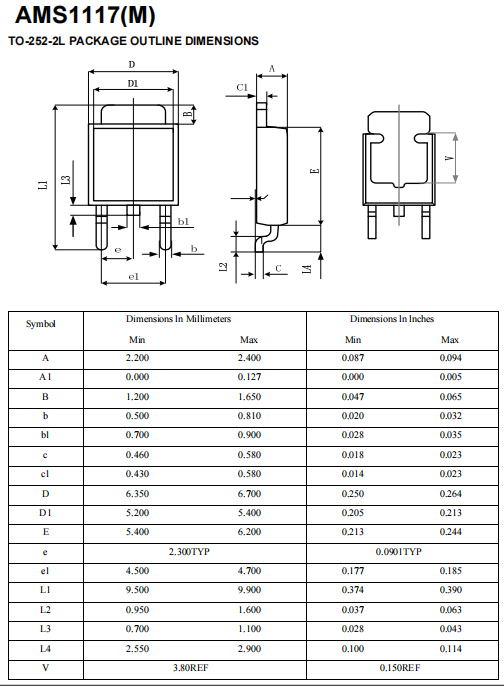

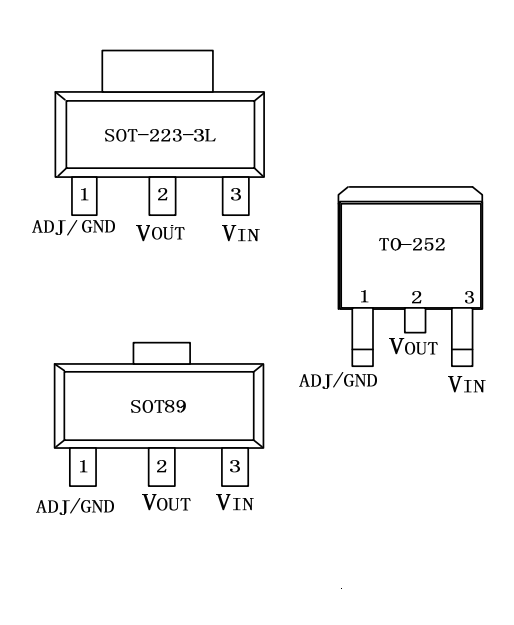

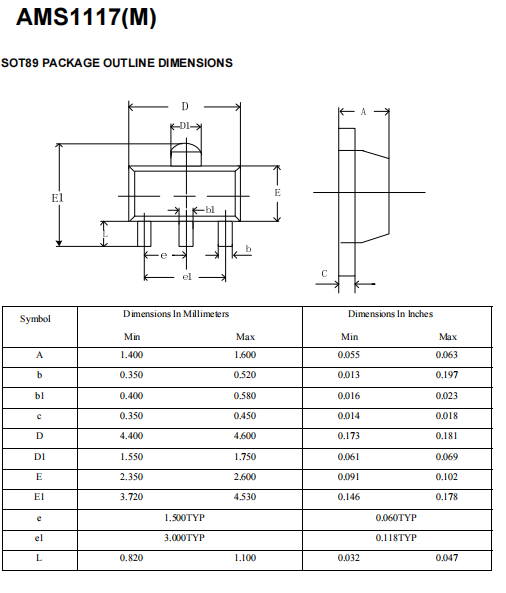

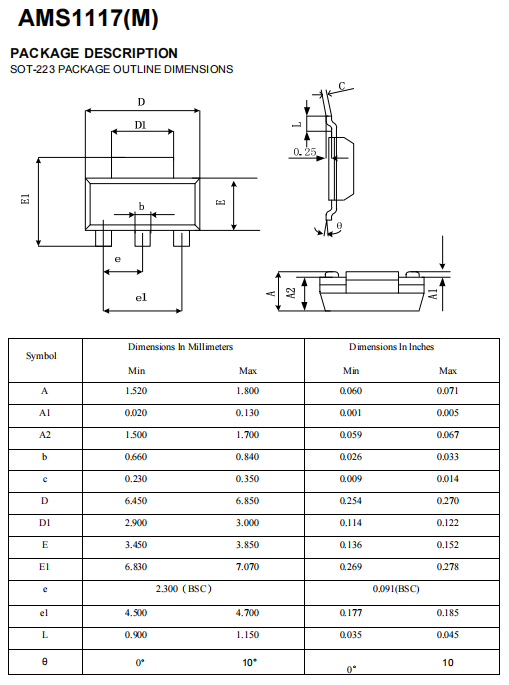

Standard SOT-223,TO-252 ,SOT89 Packages
Products
Contact Now
Descriptions
Reviews

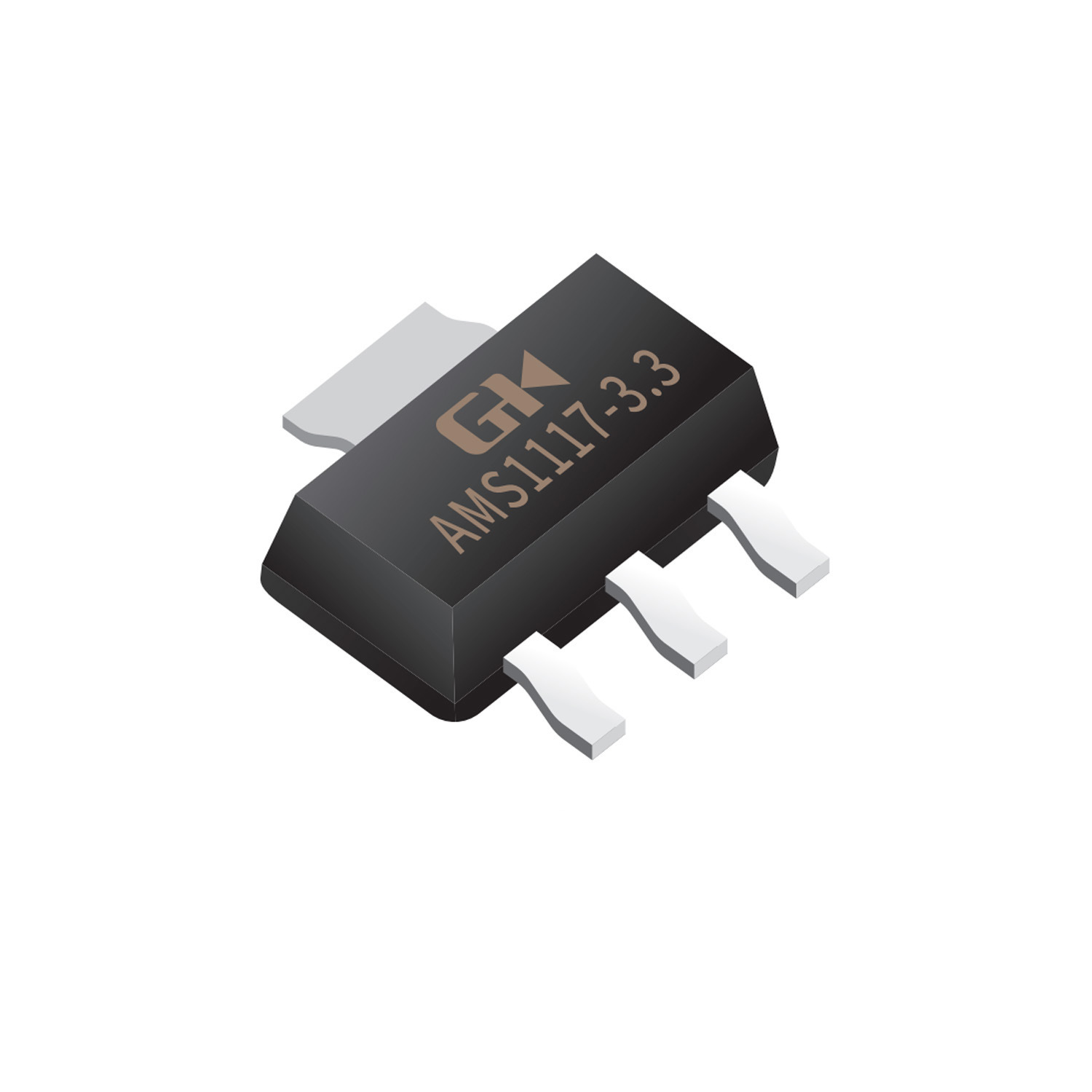

The AMS1117-3.3 is a highly efficient LDO (Low Dropout) linear voltage regulator that delivers a stable 3.3V output with a current capacity of up to 800mA. Housed in a robust SOT-223 package, this regulator is known for its low dropout voltage, making it ideal for use in applications where the input voltage is only slightly higher than the output voltage. The AMS1117-3.3 is widely used in circuits requiring regulated power, such as microcontroller systems, communication devices, and automotive electronics. Additionally, it features low quiescent current and excellent load and line regulation, ensuring optimal performance and reliability. Compatible with a wide range of input voltages, it offers a versatile solution for powering sensitive electronic components and modules that need a stable 3.3V power supply.
Features：
Low Dropout Voltage.
Load regulation: 0.5% Max.
Optimized for Low Voltage
On-chip thermal limiting.
Maximum Input Voltage : 18V
Adjustable Output Voltage or Fixed 1.2V, 1.5V, 1.8V, 2.5V, 3.3V,5V Standard SOT-223,TO-252 ,SOT89 Packages
Applications ：
Post Regulator for switching DC/DC
Converter 、High Efficiency Linear Regulator 、Battery Chargers 、PC Add on Card 、Motherboard clock supplies 、LCD Monitor 、Set-top Box
